System selection
Model and accessory recommendations based on your dimensions, panel weight and control logic.
Maglev automatic door system
Switchable-Glass Maglev Track System
Moving track solution designed to coordinate automatic sliding movement with switchable privacy glass.
Best fit
Designed for professional system integration
Switchable-Glass Maglev Track System is supplied for local specialists who fabricate, install and service automatic doors. SIPU supplies the operator system and supports configuration; your team completes the door assembly and local installation.
System overview
Key configuration information
- Panel capacity
- Configured to glass and door-system requirements
- System format
- Project-specific track and wiring layout
- Typical applications
- Meeting rooms, clinics, hospitality and privacy-sensitive interiors
- Electrical input
- AC 110–220 V ±10%
- Speed range
- 100–500 mm/s, adjustable
- Activation
- Sensor, push button, touchless switch or access-control input

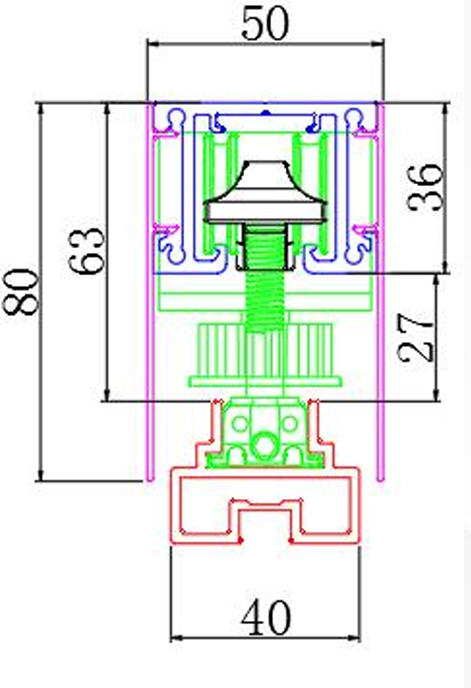

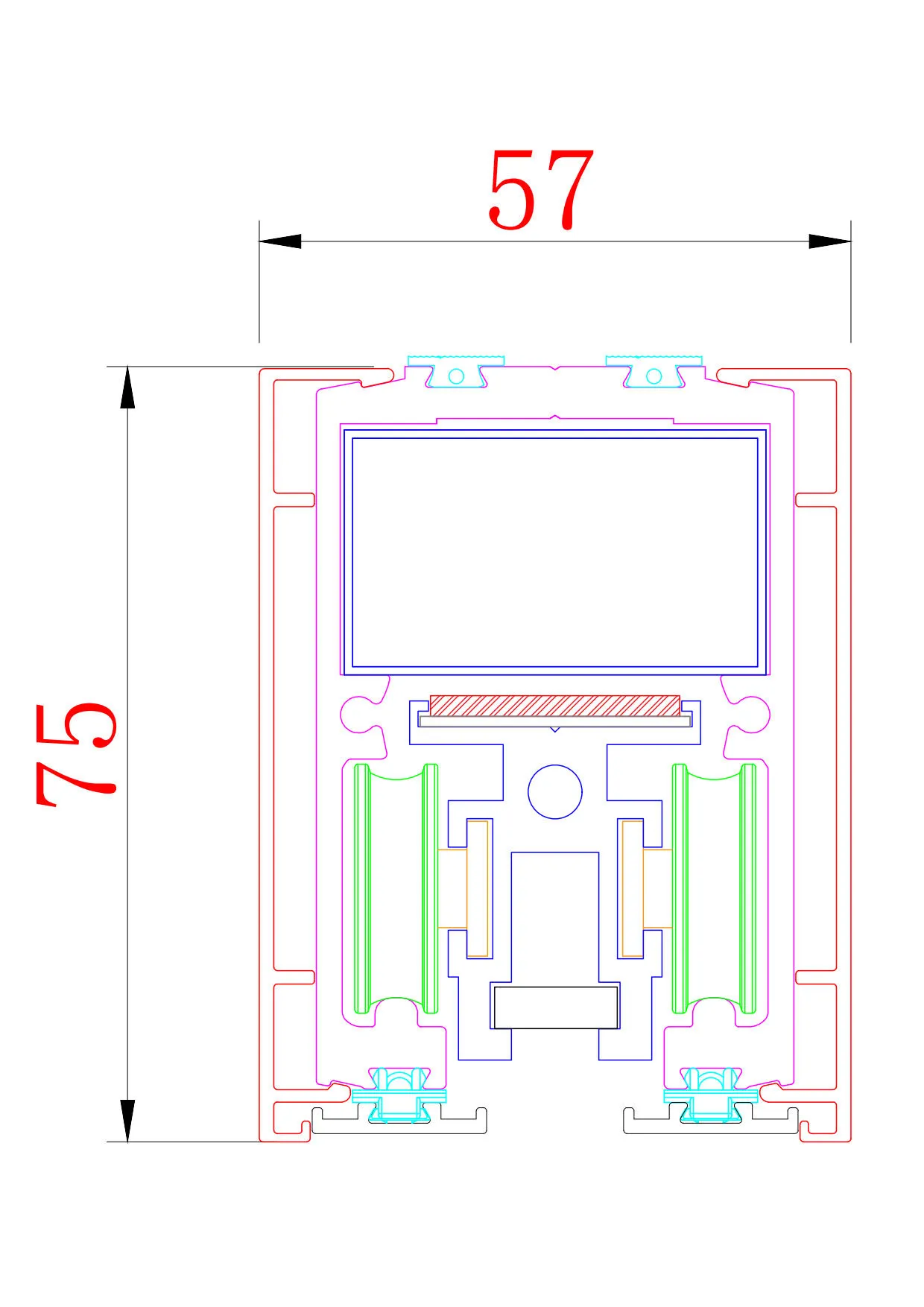

Technical drawings
Structure & Dimensions
Click a drawing to view the full-size reference. Confirm final dimensions with SIPU before fabrication.
Integration checklist
Before fabrication and installation
Use this checklist when coordinating the operator, door panels, supporting structure and local control requirements.
- Confirm panel weight before operator selection
- Provide a level, rigid mounting structure
- Allow service access to the operator and controller
- Choose safety devices for the local use case
- Verify applicable electrical, accessibility and building requirements
Specifications are reference values, not a substitute for a project-specific selection.
Trade support
What SIPU provides to partners
Technical documents
Reference dimensions, wiring information and commissioning guidance for qualified teams.
Commercial supply
Project quotations and repeat-order discussions for installers, factories and distributors.
Product enquiry
Request a quote for Switchable-Glass Maglev Track System
Tell us the quantity, application and destination. The current product is included automatically with your enquiry.
Technical FAQ
Questions from installers and manufacturers
Who is the Smart Glass Track system for?
It is supplied to professional automatic door installers, door manufacturers, hardware distributors and project integrators. SIPU does not provide local installation for individual end users.
Can the system be integrated with access control?
The controller can work with common activation inputs such as radar sensors, push buttons, touchless switches and access-control dry contacts. Confirm the required interface when requesting a quotation.
What drawings should I send?
Send the clear opening, overall opening, panel dimensions, panel material and weight, stacking direction, profile section if applicable, and the planned activation method.
Is remote technical support available?
SIPU provides selection guidance, technical documentation and remote support to trade partners. On-site work remains the responsibility of the local qualified partner.
